UV Clarifier 24W
The CUV-224 has three inlet / outlet's - very useful if you want to run the output to a two-fall waterfall, or indeed a waterfall and a filter. The unit comes complete with three stepped hosetails to fit a variety of hose sizes.
How does it work?
The UV light causes algae (green water) to clump together (flocculate) so that they can be sieved out of the water by the filter.
It also reduces harmful bacteria, as well as microscopic organisms that could be harmful to your fish.
POWER (W):24W UV-C: 24W
UV-C(%):8000HOURS:85
CAPACITY:35000L
MAX PRESSURE:0.3
THROUGH FLOW(L/H):4500
INLET&OUTLET ADAPTER: 19mm (3/4)~ 38mm (1 ½”)
Connects directly to CBF-350 & 350B
Information
- Wall mounting bracket attached to the UV light complete with screws
- Suitable for ponds up to 35000 litres.
- Inlet and Outlet adapter fits 13, 20, 25, 32 and 40mm size hose.
The Ultra Violet Clarifier (UVC) continues to form a key element of a clear water system. The UV light causes algae (green water) to clump together (flocculate) so that they can be sieved out of the water by a filter. Simple to install and extremely easy to clean and maintain.
The UVC Lamp installed in the unit is intended to kill algae and bacteria in the pond water
The efficient UVC lamp has a 8000hr life (2yrs approx.). Replace every 2 yrs where necessary.
Ultra Violet Clarifier to be used with existing or new pond pump and be used in-line with a Biological sponge or gravel filter.
The stepped hose connectors are suitable to connect to various hose sizes and components.

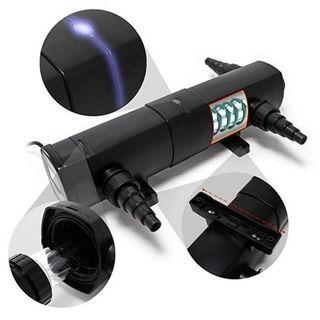

Features
Clear Viewports
Included with the CUV-224 is a built in end of case viewport as well as a glass viewport that you can utilise on any unused outlet.
These viewports give you a visually indication that your UV is either on or off at any time.
UV + Quartz
System includes free 24w UV bulb and high quality UV quartz with easily accessible o-rings for simple maintenance
Specifications
MODEL CUV-224
POWER CONSUMPTION 24W
UV/C 24W
UV/C(%) 85(%) 8000HOURS
CAPACITY 35000L
MAX PRESSURE 0.3BAR
THROUGH 4500L/H
