Jebao Pressure Filter PF-10E

Jebao Pressure Filter PF-10E
Provides mechanical and UV clarification for ponds up to 6 cubic metre.
UV-C 7W

Easy view indicators show when the UV light is working and when it is time to clean the filter.
Easy maintenance and cleaning.
Pressure filter will need to be used in conjunction with a dirty water pump (NOT supplied).
Max. through flow: 4000 litres per hour (lph)
Dimensions: Ø278mm x 387mm.
Compatible with hose sizes 15 / 20 / 25 mm.
Filter volume: 10 litres
Price:
NZ$ 370.00 including GST
PF10-E
Purchase Qty:



BIO - FILTER FEATURES

Multi-stage biological and mechanical filtration process provides maximum pond filtration.

Large foam surface provides increased filtration and beneficial bacteria growth.

Includes bio-balls, providing a high-surface area for beneficial bacteria to thrive and naturally clean pond pollutants.

Unique external pressure indicator shows green when filter is performing properly, and shows red when filter cleaning is necessary.

Unit is designed to be hidden and keep your pond environment beautiful.

 Pressurised filters are ideal for use with waterfall applications.

 Easy and secure sealing mechanism ensures positive seal and easy operation.

UV light incorporates special quartz glass, a high quality clear material that allows virtually all ultra-violet light to pass, significantly increasing the performance of your filter.

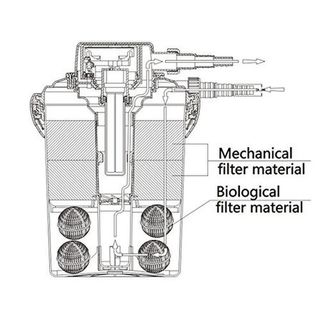

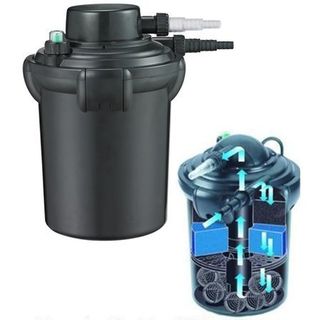

HOW DOES IT WORK

STAGE 1- MECHANICAL FILTRATION:

Water is pumped into the filter creating the necessary pressure to begin the mechanical filtration stage. There are three phases in the mechanical filtration stage-coarse, medium-coarse and fine filtration.  Each phase uses a specially designed foam sponge to effectively remove all sizes of unwanted debris.

STAGE 2- BIOLOGICAL FILTRATION:

The biological filtration stage begins when water reaches the bottom of the filter. This stage uses bio-balls providing a habitat for beneficial bacteria to grow. These bacteria naturally convert harmful ammonia and other wastes into healthy nitrates that fertilise aquatic plants and support a healthy pond environment.

STAGE 3 - UV FILTRATION:

The final filtering stage uses a low voltage, Ultra - Violet (UV) light located in the middle of your filter.  Exposure to the UV light kills algae as the water passes upward through the filter on its way back to your pond.
