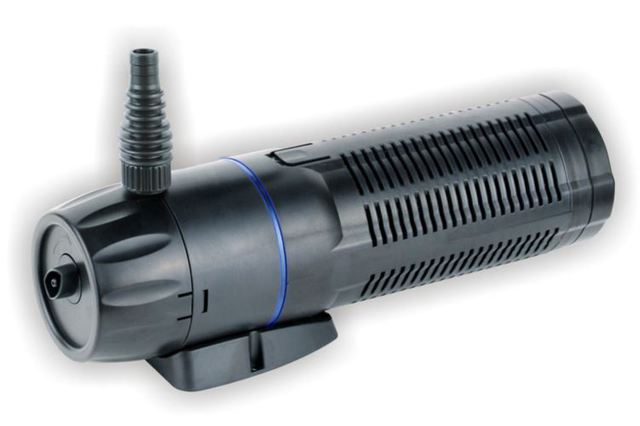

CUP129 All-in-one Pond Pump and Filtration unit with Fountain
This pump have filter, sterilization, pumping and many other functions into one, especially suitable for small ponds and ancillary equipment for medium and large aquariums. Both sea and fresh water dual-use, and with characeristics of easy maintenance and durable.
1. Filtration sponge with filter media.
3. UV steriliser. Comes with UV.
water Pump: 6W
UV light: 9W
MAX Flow: 1000 Litres per hour
MAX head height: 1.4 mtrs
Unit Length: 330mm
WEIGHT: 1.8 KG
5m rubber cable
Additional Maintenance Information – CUP129/359
This product has two filter sponges, one cylindrical course sponge and one fine impellor sponge. The course sponge is located around the UV clarifying light and the fine impellor sponge is located inside the impellor cover.
Both sponges require regular cleaning to keep the pump, fountain and filtration running at optimal levels. Blockage of the sponges can cause a restriction of water with possible overheating and pump damage.
The sponges trap and filter particulates and debris so the water released from the pump is cleaned. The CUP129/359 must be raised from the bottom of the sump/pond to reduce the intake of silt/sediment.
Cleaning: Turn off the power. Remove the pump from the water and drain. Remove both sponges and wash under a tap. Keep cleaning until the water runs clear. DO NOT wring out sponges. Sponges will need to be replaced when worn out.
If excessive blocking occurs clear the pond/water feature of the large debris with a net or pond vacuum.
OPTIONAL: Remove the fine impellor sponge to increase flow. Note: Removal of this sponge can cause additional wear on the impellor and shaft with possible blockage of the fountain unit (if in use).
Remove the pump from water by the main body. Removal by cord will cause wire fractures at the connection invalidating warranty.
